SonicWall NSa 5700 Secure Upgrade Plus - Advanced Edition - 2 Year - 02-SSC-3929
- Recommended for Large Enterprise
- ISP Connection Speeds up to 7000 Mbps*
- Content Filtering to control access to Internet content
- Gateway Antivirus to protect you from viruses & ransomware
- Intrusion Prevention Services to detect network attacks
- 24x7 Technical Services for support, firmware, and warranty
- Zero Day Protection from unknown threats
- Cloud Management for reporting & remote management
- Optional Configuration Support to get you secure
- Optional Hassle-Free Management to keep you secure
For Pricing, request a quote.

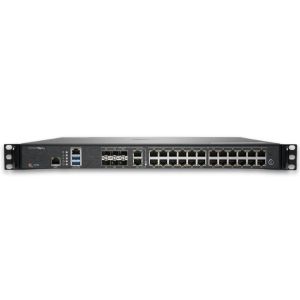

SonicWall NSa 5700
The SonicWall Network Security Appliance (NSa) 5700 is a next-generation firewall (NGFW) designed to meet the security needs of medium- to large-sized enterprises. With industry-leading performance and comprehensive security features, the NSa 5700 offers robust protection against advanced threats while maintaining a low total cost of ownership. This appliance is built with the latest hardware components to deliver multi-gigabit threat prevention throughput, ensuring your network remains secure without compromising performance.
Key Features and Benefits
- High Performance: The NSa 5700 delivers multi-gigabit threat prevention throughput, even for encrypted traffic, with a maximum firewall inspection throughput of 28 Gbps and threat prevention throughput of 15 Gbps.
- Comprehensive Security: Features include intrusion prevention, VPN, application control, malware analysis, URL filtering, DNS Security, Geo-IP, and Bot-net services.
- High Port Density: Equipped with 6x10G/5G/2.5G/1G SFP+ ports, 2x10G/5G/2.5G/1G Cu ports, and 24x1GbE Cu ports, the NSa 5700 supports high availability, clustering, and dual power supplies for network and hardware redundancy.
- SonicOS 7.0: The latest operating system provides a modern user interface, intuitive workflows, easy policy configuration, zero-touch deployment, and flexible management to enhance security and operational efficiency.
- Secure SD-WAN: Advanced networking features such as SD-WAN, dynamic routing, and high-speed VPN functionality are supported.
- Advanced Threat Protection: Access to SonicWall’s premier security services, including Capture Advanced Threat Protection (ATP) cloud-based sandboxing and Real-Time Deep Memory Inspection (RTDMI™), ensures comprehensive gateway protection against the most stealthy and dangerous malware, including zero-day and encrypted threats.
Specifications
| Specification | Detail |
|---|---|
| Operating System | SonicOS 7.0 |
| Interfaces | 6x10G/5G/2.5G/1G (SFP+); 2x10G/5G/2.5G/1G (Cu); 24x1GbE Cu; 2 USB 3.0, 1 Console, 1 Management port |
| Storage | 128GB Built-in, Expandable up to 1TB |
| Firewall Inspection Throughput | 28 Gbps |
| Threat Prevention Throughput | 15 Gbps |
| Application Inspection Throughput | 18 Gbps |
| IPS Throughput | 17 Gbps |
| Anti-Malware Inspection Throughput | 16 Gbps |
| TLS/SSL Inspection and Decryption Throughput (DPI SSL) | 7 Gbps |
| IPSec VPN Throughput | 15 Gbps |
| Connections per Second | 228,000 |
| Maximum Connections (SPI) | 5,000,000 |
| Maximum DPI-SSL Connections | 350,000 |
| Maximum Connections (DPI) | 3,500,000 |
| Site-to-Site VPN Tunnels | 6,000 |
| IPSec VPN Clients (max) | 2000 (4000) |
| SSL VPN Licenses (max) | 2 (1500) |
| Encryption/Authentication | DES, 3DES, AES (128, 192, 256-bit)/MD5, SHA-1, Suite B Cryptography |
| Key Exchange | Diffie Hellman Groups 1, 2, 5, 14v |
| Route-based VPN | RIP, OSPF, BGP |
| Certificate Support | Verisign, Thawte, Cybertrust, RSA Keon, Entrust and Microsoft CA for SonicWall-to-SonicWall VPN, SCEP |
| VPN Features | Dead Peer Detection, DHCP Over VPN, IPSec NAT Traversal, Redundant VPN Gateway, Route-based VPN |
| Global VPN Client Platforms Supported | Windows 10 |
| NetExtender | Windows 10 and Linux |
| Mobile Connect | Apple® iOS, Mac OS X, Google® Android™, Kindle Fire, Chrome, Windows 8.1 (Embedded) |
| Deep Packet Inspection Services | Gateway Anti-Virus, Anti-Spyware, Intrusion Prevention, DPI SSL |
| Content Filtering Service (CFS) | HTTP URL, HTTPS IP, keyword and content scanning, comprehensive filtering based on file types such as ActiveX, Java, Cookies for privacy, allow/forbid lists |
| Comprehensive Anti-Spam Service | Supported |
| Application Visualization | Yes |
| Application Control | Yes |
| Capture Advanced Threat Protection | Yes |
| QoS | Bandwidth priority, max bandwidth, guaranteed bandwidth, DSCP marking, 802.1e (WMM) |
| Authentication | LDAP (multiple domains), XAUTH/RADIUS, SSO, Novell, internal user database, Terminal Services, Citrix, Common Access Card (CAC) |
| Local User Database | 2500 |
| VoIP | Full H323-v1-5, SIP |
| Standards | TCP/IP, UDP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS, IEEE 802.3 |
| Certifications (pending) | FIPS 140-2 (with Suite B) Level 2, UC APL, VPNC, IPv6 (Phase 2), ICSA Network Firewall, ICSA Anti-virus, Common Criteria NDPP (Firewall and IPS) |
| Common Access Card (CAC) | Supported |
| High Availability | Active/Passive with stateful synchronization |
| Form Factor | 1U Rack Mountable |
| Fans | 2 (removable) |
| Power Supply | 1x350W |
| Maximum Power Consumption (W) | 128.1 |
| Input Power | 100-240 VAC, 50-60 Hz |
| Total Heat Dissipation | 436.8 BTU |
| Dimensions | 43 x 46.5 x 4.5 (cm) / 16.9 x 18.1 x 1.8 (in) |
| Weight | 7.8 kg / 17.2 lbs |
| WEEE Weight | 9.6 kg / 21.2 lbs |
| Shipping Weight | 13.5 kg / 29.8 lbs |
| Environment (Operating/Storage) | 32°-105° F (0°-40° C) / -40° to 158° F (-40° to 70° C) |
| Humidity | 0-90% R.H non-condensing |
Ideal for
The SonicWall NSa 5700 is perfect for large enterprises requiring robust security solutions without sacrificing performance. It is particularly suitable for:
- Enterprises needing high-performance protection against advanced threats.
- Organizations that demand high port density and secure SD-WAN capabilities.
- Businesses looking to future-proof their network security with multi-gigabit threat analysis performance.
- Companies needing secure internet access for distributed branch offices and seamless access to internal resources.
For more information or to make a purchase, please contact us at sales@firewalls.com or call us at 866.403.5305.
