SonicWall NSa 5700 Total Secure - Advanced Edition - 1 Year - 02-SSC-3919
- Recommended for Large Enterprise
- ISP Connection Speeds up to 7000 Mbps*
- Content Filtering to control access to Internet content
- Gateway Antivirus to protect you from viruses & ransomware
- Intrusion Prevention Services to detect network attacks
- 24x7 Technical Services for support, firmware, and warranty
- Zero Day Protection from unknown threats
- Cloud Management for reporting & remote management
- Optional Configuration Support to get you secure
- Optional Hassle-Free Management to keep you secure

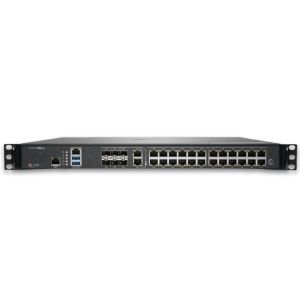

SonicWall NSa 5700 TotalSecure
The SonicWall NSa Firewall TotalSecure Advanced Edition 1 Year security services with hardware is a next-generation firewall (NGFW) designed to meet the security needs of medium- to large-sized enterprises. With industry-leading performance and comprehensive security features, the Network Security Appliance (NSa) 5700 offers robust protection against advanced threats while maintaining a low total cost of ownership. This NSa 5700 firewall with TotalSecure Advanced is built with the latest hardware components to deliver multi-gigabit threat prevention throughput, ensuring your network remains secure with the ultimate cybersecurity protection for large enterprises seeking to enhance their network infrastructure.
Key Features and Benefits
- High Performance: The SonicWall NSa Firewall TotalSecure Advanced Edition 1 Year security services with hardware delivers multi-gigabit threat prevention throughput, even for encrypted traffic, with a maximum firewall inspection throughput of 28 Gbps and threat prevention throughput of 15 Gbps for your next-generation cybersecurity protection.
- Comprehensive Security: Features of the NSa 5700 series includes intrusion prevention, VPN, application control, malware analysis, URL filtering, DNS Security, Geo-IP, and Bot-net services for advanced network security and integrated solutions building a fortified defense against modern cyber threats while ensuring seamless connectivity for users.
- High Port Density: Equipped with 6x10G/5G/2.5G/1G SFP+ ports, 2x10G/5G/2.5G/1G Cu ports, and 24x1GbE Cu ports, the NSa 5700 firewalls supports high availability, clustering, and dual power supplies for network and hardware redundancy for your constant connectivity and network speed.
- SonicOS 7.0: This SonicWall NSa 5700 firewall appliance includes the latest operating system providing a modern dashboard and user interface, intuitive workflows, easy policy configuration, zero-touch deployment, and flexible management to enhance security and operational efficiency for your organization.
- Secure SD-WAN: Advanced networking features such as secure SD-WAN, dynamic routing, and high-speed VPN functionality are supported with top-tier features in these SonicWall business firewalls tailored for large enterprises seeking to enhance their network infrastructure and prioritizing security.
- Advanced Threat Protection: Access to SonicWall’s premier security services, including Capture Advanced Threat Protection (ATP) cloud-based sandboxing and Real-Time Deep Memory Inspection (RTDMI™) for comprehensive gateway protection against the most stealthy and dangerous malware, including zero-day and encrypted threats.
Specifications
Specification | Detail |
---|---|
Operating System | SonicOS 7.0 |
Interfaces | 6x10G/5G/2.5G/1G (SFP+); 2x10G/5G/2.5G/1G (Cu); 24x1GbE Cu; 2 USB 3.0, 1 Console, 1 Management port |
Storage | 128GB Built-in, Expandable up to 1TB |
Firewall Inspection Throughput | 28 Gbps |
Threat Prevention Throughput | 15 Gbps |
Application Inspection Throughput | 18 Gbps |
IPS Throughput | 17 Gbps |
Anti-Malware Inspection Throughput | 16 Gbps |
TLS/SSL Inspection and Decryption Throughput (DPI SSL) | 7 Gbps |
IPSec VPN Throughput | 15 Gbps |
Connections per Second | 228,000 |
Maximum Connections (SPI) | 5,000,000 |
Maximum DPI-SSL Connections | 350,000 |
Maximum Connections (DPI) | 3,500,000 |
Site-to-Site VPN Tunnels | 6,000 |
IPSec VPN Clients (max) | 2000 (4000) |
SSL VPN Licenses (max) | 2 (1500) |
Encryption/Authentication | DES, 3DES, AES (128, 192, 256-bit)/MD5, SHA-1, Suite B Cryptography |
Key Exchange | Diffie Hellman Groups 1, 2, 5, 14v |
Route-based VPN | RIP, OSPF, BGP |
Certificate Support | Verisign, Thawte, Cybertrust, RSA Keon, Entrust and Microsoft CA for SonicWall-to-SonicWall VPN, SCEP |
VPN Features | Dead Peer Detection, DHCP Over VPN, IPSec NAT Traversal, Redundant VPN Gateway, Route-based VPN |
Global VPN Client Platforms Supported | Windows 10 |
NetExtender | Windows 10 and Linux |
Mobile Connect | Apple® iOS, Mac OS X, Google® Android™, Kindle Fire, Chrome, Windows 8.1 (Embedded) |
Deep Packet Inspection Services | Gateway Anti-Virus, Anti-Spyware, Intrusion Prevention, DPI SSL |
Content Filtering Service (CFS) | HTTP URL, HTTPS IP, keyword and content scanning, comprehensive filtering based on file types such as ActiveX, Java, Cookies for privacy, allow/forbid lists |
Comprehensive Anti-Spam Service | Supported |
Application Visualization | Yes |
Application Control | Yes |
Capture Advanced Threat Protection | Yes |
QoS | Bandwidth priority, max bandwidth, guaranteed bandwidth, DSCP marking, 802.1e (WMM) |
Authentication | LDAP (multiple domains), XAUTH/RADIUS, SSO, Novell, internal user database, Terminal Services, Citrix, Common Access Card (CAC) |
Local User Database | 2500 |
VoIP | Full H323-v1-5, SIP |
Standards | TCP/IP, UDP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS, IEEE 802.3 |
Certifications (pending) | FIPS 140-2 (with Suite B) Level 2, UC APL, VPNC, IPv6 (Phase 2), ICSA Network Firewall, ICSA Anti-virus, Common Criteria NDPP (Firewall and IPS) |
Common Access Card (CAC) | Supported |
High Availability | Active/Passive with stateful synchronization |
Form Factor | 1U Rack Mountable |
Fans | 2 (removable) |
Power Supply | 1x350W |
Maximum Power Consumption (W) | 128.1 |
Input Power | 100-240 VAC, 50-60 Hz |
Total Heat Dissipation | 436.8 BTU |
Dimensions | 43 x 46.5 x 4.5 (cm) / 16.9 x 18.1 x 1.8 (in) |
Weight | 7.8 kg / 17.2 lbs |
WEEE Weight | 9.6 kg / 21.2 lbs |
Shipping Weight | 13.5 kg / 29.8 lbs |
Environment (Operating/Storage) | 32°-105° F (0°-40° C) / -40° to 158° F (-40° to 70° C) |
Humidity | 0-90% R.H non-condensing |
Ideal For:
The SonicWall NSa Firewall TotalSecure Advanced Edition 1YR security services with hardware is perfect for large enterprises requiring robust security solutions while maintaining superior performance for:
- Enterprises needing high-performance protection against advanced threats.
- Organizations that demand high port density and secure SD-WAN capabilities.
- Businesses looking to future-proof their network security with multi-gigabit threat analysis performance.
- Companies needing secure internet access for distributed branch offices and seamless access to internal resources.
SonicWall NSa 5700 series is the best choice for large business firewalls with top-tier security and performance. Secure your network to safeguard against sophisticated threats while maintaining operational efficiency. Ideal for businesses needing a secure network for employees and devices that require constant, secure access to the web. Its zero-touch deployment and cloud-based management for organizations with easy remote administration. Plus, its subscription-based security services ensure that it scales with your business, adapting as your security needs evolve. For more information about the SONICWALL NSA 5700 FIREWALL TOTALSECURE ADVANCED EDITION 1 YEAR, contact us info@firewalls.com or call 866-403-5305. Our team is ready to assist you!
