SonicWall NSA 6700 TotalSecure - Advanced Edition - 1 Year - 02-SSC-9592

Name: SonicWall NSA 6700 TotalSecure - Advanced Edition - 1 Year
Brand: SonicWall
SKU: 02-SSC-9592
Price: 34204 USD
Availability: InStock

Skip to the end of the images gallery

Download Datasheet

Skip to the beginning of the images gallery

Recommended for Large Enterprise
ISP Connection Speeds up to 9000 Mbps*
Content Filtering to control access to Internet content
Gateway Antivirus to protect you from viruses & ransomware
Intrusion Prevention Services to detect network attacks
24x7 Technical Services for support, firmware, and warranty
Zero Day Protection from unknown threats
Cloud Management for reporting & remote management
Optional Configuration Support to get you secure
Optional Hassle-Free Management to keep you secure

$34,204.00

20% OFF! $42,755.00

Details

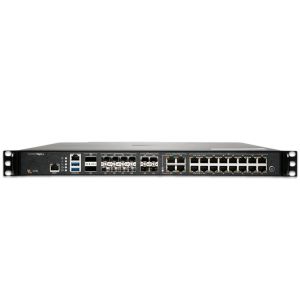

SonicWall NSa 6700

The SonicWall Network Security Appliance (NSa) 6700 is a next-generation firewall (NGFW) designed to meet the security needs of large enterprises. With industry-leading performance and comprehensive security features, the NSa 6700 offers robust protection against advanced threats while maintaining a low total cost of ownership. This appliance is built with the latest hardware components to deliver multi-gigabit threat prevention throughput, ensuring your network remains secure without compromising performance.

Key Features and Benefits

High Performance: The NSa 6700 delivers multi-gigabit threat prevention throughput, even for encrypted traffic, with a maximum firewall inspection throughput of 36 Gbps and threat prevention throughput of 19 Gbps.
Comprehensive Security: Features include intrusion prevention, VPN, application control, malware analysis, URL filtering, DNS Security, Geo-IP, and Bot-net services.
High Port Density: Equipped with 8x25G ports, 2x40G SFP/SFP+ ports, 4x10G/5G/2.5G/1G SFP+ ports, 4x10G/5G/2.5G/1G Cu ports, and 16x1GbE Cu ports, the NSa 6700 supports high availability, clustering, and dual power supplies for network and hardware redundancy.
SonicOS 7.0: The latest operating system provides a modern user interface, intuitive workflows, easy policy configuration, zero-touch deployment, and flexible management to enhance security and operational efficiency.
Secure SD-WAN: Advanced networking features such as SD-WAN, dynamic routing, and high-speed VPN functionality are supported.
Advanced Threat Protection: Access to SonicWall’s premier security services, including Capture Advanced Threat Protection (ATP) cloud-based sandboxing and Real-Time Deep Memory Inspection (RTDMI™), ensures comprehensive gateway protection against the most stealthy and dangerous malware, including zero-day and encrypted threats.

Specifications

Specification	Detail
Operating System	SonicOS 7.0
Interfaces	2x40G SFP/SFP+, 8x25G, 4x10G/5G/2.5G/1G SFP+, 4x10G/5G/2.5G/1G Cu, 16x1GbE Cu, 2 USB 3.0, 1 Console, 1 Management port
Storage	256GB Built-in, Expandable up to 1TB
Firewall Inspection Throughput	36 Gbps
Threat Prevention Throughput	19 Gbps
Application Inspection Throughput	20 Gbps
IPS Throughput	20 Gbps
Anti-Malware Inspection Throughput	18.5 Gbps
TLS/SSL Inspection and Decryption Throughput (DPI SSL)	9 Gbps
IPSec VPN Throughput	19 Gbps
Connections per Second	153,000
Maximum Connections (SPI)	8,000,000
Maximum DPI-SSL Connections	750,000
Maximum Connections (DPI)	6,000,000
Site-to-Site VPN Tunnels	6,000
IPSec VPN Clients (max)	2000 (6000)
SSL VPN Licenses (max)	2 (1500)
Encryption/Authentication	DES, 3DES, AES (128, 192, 256-bit)/MD5, SHA-1, Suite B Cryptography
Key Exchange	Diffie Hellman Groups 1, 2, 5, 14v
Route-based VPN	RIP, OSPF, BGP
Certificate Support	Verisign, Thawte, Cybertrust, RSA Keon, Entrust and Microsoft CA for SonicWall-to-SonicWall VPN, SCEP
VPN Features	Dead Peer Detection, DHCP Over VPN, IPSec NAT Traversal, Redundant VPN Gateway, Route-based VPN
Global VPN Client Platforms Supported	Windows 10
NetExtender	Windows 10 and Linux
Mobile Connect	Apple® iOS, Mac OS X, Google® Android™, Kindle Fire, Chrome, Windows 8.1 (Embedded)
Deep Packet Inspection Services	Gateway Anti-Virus, Anti-Spyware, Intrusion Prevention, DPI SSL
Content Filtering Service (CFS)	HTTP URL, HTTPS IP, keyword and content scanning, comprehensive filtering based on file types such as ActiveX, Java, Cookies for privacy, allow/forbid lists
Comprehensive Anti-Spam Service	Supported
Application Visualization	Yes
Application Control	Yes
Capture Advanced Threat Protection	Yes
QoS	Bandwidth priority, max bandwidth, guaranteed bandwidth, DSCP marking, 802.1e (WMM)
Authentication	LDAP (multiple domains), XAUTH/RADIUS, SSO, Novell, internal user database, Terminal Services, Citrix, Common Access Card (CAC)
Local User Database	3200
VoIP	Full H323-v1-5, SIP
Standards	TCP/IP, UDP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS, IEEE 802.3
Certifications (pending)	FIPS 140-2 (with Suite B) Level 2, UC APL, VPNC, IPv6 (Phase 2), ICSA Network Firewall, ICSA Anti-virus, Common Criteria NDPP (Firewall and IPS)
Common Access Card (CAC)	Supported
High Availability	Active/Passive with stateful synchronization
Form Factor	1U Rack Mountable
Fans	2 (removable)
Power Supply	1x350W
Maximum Power Consumption (W)	139.2
Input Power	100-240 VAC, 50-60 Hz
Total Heat Dissipation	474.7 BTU
Dimensions	43 x 46.5 x 4.5 (cm) / 16.9 x 18.1 x 1.8 (in)
Weight	8.1 kg / 17.9 lbs
WEEE Weight	9.9 kg / 21.8 lbs
Shipping Weight	13.8 kg / 30.4 lbs
Environment (Operating/Storage)	32°-105° F (0°-40° C) / -40° to 158° F (-40° to 70° C)
Humidity	0-90% R.H non-condensing

Ideal for

The SonicWall NSa 6700 is perfect for large enterprises requiring robust security solutions without sacrificing performance. It is particularly suitable for:

Enterprises needing high-performance protection against advanced threats.
Organizations that demand high port density and secure SD-WAN capabilities.
Businesses looking to future-proof their network security with multi-gigabit threat analysis performance.
Companies needing secure internet access for distributed branch offices and seamless access to internal resources.

SONICWALL NSA ENTERPRISE SERIES COMPARISON

System Specs	NSa 6700	NSa 9250	NSa 9450	NSa 9650
Interfaces	2x40G; 8x25G, 4 x10G/5G/2.5/1G SFP+, 4 x 10G/5G/2.5G/1G (Cu); 16 x 1GbE (Cu) 2 USB 3.0, 1 Console, 1 Mgmt. port	8x1GbE, 8x2.5GbE, 2x10GbE, 10x10GbE SFP+, 1 GbE Management, 1 Console	8x1GbE, 8x2.5GbE, 2x10GbE, 10x10GbE SFP+, 1 GbE Management, 1 Console	8x1GbE, 8x2.5GbE, 2x10GbE, 10x10GbE SFP+, 1 GbE Management, 1 Console
Built-In SSD	256GB M.2	1 TB, 128 GB	1 TB, 128 GB	1 TB, 256 GB
SSO Users	70,000	80,000	90,000	100,000
VLAN Interfaces	512	512	512	512
Max APs	512	192	192	192
Firewall Throughput	36 Gbps	12.0 Gbps	17.1 Gbps	17.1 Gbps
Threat Prevention Throughput	19 Gbps	6.5 Gbps	9.0 Gbps	9.4 Gbps
App Inspection Throughput	20 Gbps	7.8 Gbps	10.8 Gbps	11.5 Gbps
IPS Throughput	20 Gbps	7.2 Gbps	10.2 Gbps	10.3 Gbps
Anti-Malware Throughput	18.5 Gbps	6.5 Gbps	8.0 Gbps	8.5 Gbps
DPI SSL Throughput	9 Gbps	1.5 Gbps	2.1 Gbps	2.25 Gbps
VPN Throughput	19 Gbps	6.75 Gbps	10.0 Gbps	10.0 Gbps
Max Connections (DPI)	6,000,000	3,000,000	4,000,000	5,000,000
New Connections per Sec	153,000	90,000	130,000	130,000
Site-to-Site VPN Tunnels	6,000	12,000	12,000	12,000
Max IPSec VPN Clients	2,000 (6,000)	2,000 (6,000)	2,000 (6,000)	2,000 (6,000)
Max SSL VPN Licenses	2 (2,000)	2 (3,000)	2 (3,000)	50 (3,000)

SonicWall Advanced Protection: Enhanced Security for Demanding Environments

SonicWall Advanced Protection offers a robust security solution designed for environments requiring enhanced protection against sophisticated cyber threats. This package includes advanced features like application intelligence, real-time deep memory inspection, and multi-engine sandboxing, providing an additional layer of defense to keep critical systems and data safe.

Key Features:

Application Intelligence: Delivers fine-grained control over applications, enabling organizations to manage and secure application usage effectively.
Real-Time Deep Memory Inspection (RTDMI): Detects and blocks malware that hides inside encrypted traffic, significantly reducing the risk of advanced threats.
Multi-Engine Sandboxing: Analyzes suspicious files in a virtual environment to identify and stop new and unknown threats before they enter the network.
Advanced Content Filtering: Offers comprehensive content filtering capabilities that go beyond basic solutions to provide enhanced control over online content accessed through the network.
Enhanced Network Visibility: Provides advanced analytics tools for deeper insight into network traffic and security threats, facilitating proactive management and response.

Benefits:

Superior Threat Protection: Offers protection against sophisticated and emerging threats with advanced security capabilities.
Regulatory Compliance: Helps meet stringent compliance requirements with advanced security measures and reporting features.
Optimized Network Performance: Maintains high network performance while enforcing robust security measures.
Customizable Security Policies: Enables tailored security settings that align with specific business needs and threat environments.
Future-Ready Security: Prepares businesses for future threats with continuous updates and next-generation technologies.

For more information or to make a purchase, please contact us at sales@firewalls.com or call us at 866.403.5305.

More Information

More Information
Product Name	SonicWall NSA 6700 TotalSecure - Advanced Edition - 1 Year
SKU	02-SSC-9592
Manufacturer	SonicWall
Active	No
ISP Connection Speed	8000 - 10600 Mbps
Form Factor	Rackmount
Feature Edition	Advanced Edition
Service Length	1 Year License
Data Sheet	View Sheet
